Local playground for testing and development


NOTE

This tutorial relies on some makefile targets, to be able to fully understand what's happening under the covers, check the Makefile source code. Or you may want to run a target first with -n switch that will print what it is going to do (example: make -n test-round-robin). For more user-centric targets in that makefile consult make help.

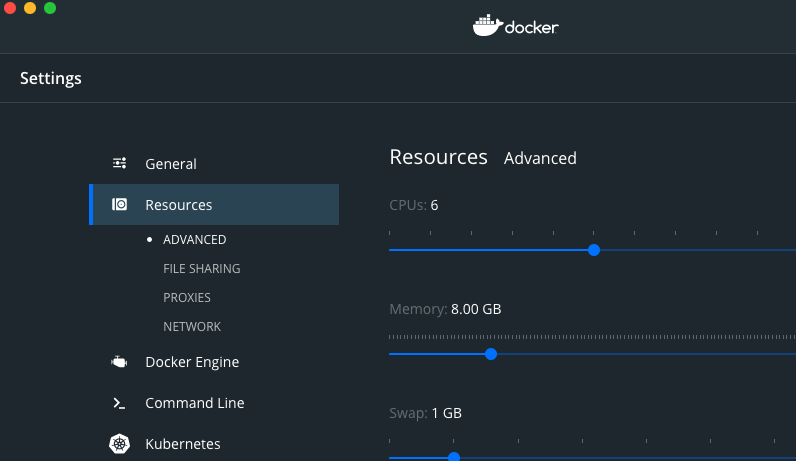

Environment prerequisites

Running project locally

To spin-up a local environment using two k3s clusters and deploy a test application to both clusters, execute the command below:

make deploy-full-local-setup

Verify installation

If local setup runs well, check if clusters are correctly installed

kubectl cluster-info --context k3d-edgedns && kubectl cluster-info --context k3d-test-gslb1 && kubectl cluster-info --context k3d-test-gslb2

Cluster test-gslb1 is exposing external DNS on default port :5053 while test-gslb2 on port :5054.

Cluster edgedns runs BIND and acts as EdgeDNS holding Delegated Zone for out test setup and answers on port :1053.

dig @localhost -p 1053 roundrobin.cloud.example.com +short +tcp

Should return two A records from both clusters (IP addresses and order may differ):

172.20.0.2
172.20.0.5
172.20.0.4
172.20.0.6

You can verify that correct IP addresses of all the nodes in both clusters were populated:

for c in k3d-test-gslb{1,2}; do kubectl get no -ocustom-columns="NAME:.metadata.name,IP:status.addresses[0].address" --context $c; done

Returns a result similar to:

NAME                      IP
k3d-test-gslb1-agent-0    172.20.0.2
k3d-test-gslb1-server-0   172.20.0.4
NAME                      IP
k3d-test-gslb2-server-0   172.20.0.6
k3d-test-gslb2-agent-0    172.20.0.5

Or you can ask specific CoreDNS instance for its local targets:

dig -p 5053 +tcp @localhost localtargets-roundrobin.cloud.example.com && \
dig -p 5054 +tcp @localhost localtargets-roundrobin.cloud.example.com

As expected result you should see two A records divided between both clusters.

...
...
;; ANSWER SECTION:
localtargets-roundrobin.cloud.example.com. 30 IN A 172.20.0.4
localtargets-roundrobin.cloud.example.com. 30 IN A 172.20.0.2
...
...
localtargets-roundrobin.cloud.example.com. 30 IN A 172.20.0.5
localtargets-roundrobin.cloud.example.com. 30 IN A 172.20.0.6

Both clusters have podinfo installed on the top. Run following command and check if you get two json responses.

curl localhost:80 -H "Host:roundrobin.cloud.example.com" && curl localhost:81 -H "Host:roundrobin.cloud.example.com"

Run integration tests

There is wide range of scenarios which GSLB provides and all of them are covered within tests. To check whether everything is running properly execute terratest :

make terratest

Cleaning

Clean up your local development clusters with

make destroy-full-local-setup

Sample demo

Round Robin

Both clusters have podinfo installed on the top, where each cluster has been tagged to serve a different region. In this demo we will hit podinfo by wget -qO - roundrobin.cloud.example.com and depending on the region, podinfo will return us or eu. In the current round robin implementation IP addresses are randomly picked. See Gslb manifest with round robin strategy

Try to run the following command several times and watch the message field.

make test-round-robin

As expected result you should see podinfo message changing

{
  "hostname": "frontend-podinfo-856bb46677-8p45m",
  ...
  "message": "us",
  ...
}
{
  "hostname": "frontend-podinfo-856bb46677-8p45m",
  ...
  "message": "eu",
  ...
}

Failover

Both clusters have podinfo installed on the top where each cluster has been tagged to serve a different region. In this demo we will hit podinfo by wget -qO - failover.cloud.example.com and depending on whether podinfo is running inside the cluster it returns only eu or us. See Gslb manifest with failover strategy

Switch GLSB to failover mode:

make init-failover

Now both clusters are running in failover mode and podinfo is running on both of them. Run several times command below and watch message field.

make test-failover

You will see only eu podinfo is responsive:

{
  "hostname": "frontend-podinfo-856bb46677-8p45m",
  ...
  "message": "eu",
  ...
}

Stop podinfo on current (eu) cluster:

make stop-test-app

Several times hit application again

make test-failover

As expected result you should see only podinfo from second cluster (us) is responding:

{
  "hostname": "frontend-podinfo-856bb46677-v5nll",
  ...
  "message": "us",
  ...
}

It might happen that podinfo will be unavailable for a while due to DNS sync interval and default k8gb DNS TTL of 30 seconds

wget: server returned error: HTTP/1.1 503 Service Temporarily Unavailable

Start podinfo again on current (eu) cluster:

make start-test-app

and hit several times hit podinfo:

make test-failover

After DNS sync interval is over eu will be back

{
  "hostname": "frontend-podinfo-6945c9ddd7-xksrc",
  ...
  "message": "eu",
  ...
}

Optionally you can switch GLSB back to round-robin mode

make init-round-robin
