AI Inference Needs a Global Resilience Layer¶
Background: AI Inference¶
First, some background. What is AI inference?
When you ask ChatGPT "Can you explain [X] to me?", what happens? A server somewhere converts that question to tokens and passes them through some trained model. The model performs a lot of calculations, generating a response, token by token, until it has a complete answer, which it then somehow delivers to you.
Note: we're not talking about training a model here; rather, about using an already-trained model.
The Problem¶
So what could go wrong with that process?
Well, AI workloads are different from normal workloads.
In AI workloads, state and locality matter. Think: model version, context, etc. We need to route your question to a specific place, not just any healthy endpoint. This may not always be the nearest place, so we can bump up against latency tradeoffs.
AI workloads are heavy and expensive. GPU is bound, capacity is limited / uneven at different locations. Where GPUs are available and what they cost at those different locations, and what models are available, per location, matters.
AI workload requests take longer: we're simply doing more complicated work.
Why We Built the Demo¶
If all fallback logic lives inside one region, that logic cannot save you because the entrypoint itself is unhealthy.
Since clusters don't coordinate globally, GPU capacity is uneven, gateways fail, cloud regions degrade, provider quotas and rate limits happen, etc.
Because existing gateways solve regional concerns, not global resilience (local retry logic cannot recover from regional failure), we've been exploring patterns for globally resilient AI inference on Kubernetes, and built a demo. It shows how DNS-based global failover can complement existing regional inference gateways and model-serving stacks.
What does AI inference mean in k8gb land?¶
k8gb normally pushes traffic toward anything healthy, or the closest thing, depending on your chosen LB strategy.
k8gb doesn't know what "AI" is. k8gb has no idea what traffic it is routing. k8gb simply returns the IP of the "best" cluster for this request.
Unlike traditional stateless applications, the ‘nearest healthy endpoint’ is not always the correct choice for inference traffic. I.e., we may have to choose a different strategy.
So serving AI inference requests is different. AI inference in k8gb land means: instead of "send traffic to any healthy region", "send this specific request to the best region for this model, this user, and current capacity."
How does k8gb help?¶
k8gb is: DNS-based GSLB.
k8gb is not: another AI gateway, inference server, or service mesh.
And k8gb is not an in-path proxy and does not replace Envoy, Istio, KServe, or vLLM.
k8gb is a router of routers. It is a global layer above regional systems.
k8gb gives the inference endpoint a global failure boundary. Clients keep using one stable hostname. This matters operationally because clients, SDKs, and gateways no longer need bespoke regional failover logic. k8gb checks the Kubernetes-backed regional endpoints and stops returning a failed region when the referenced service has no healthy backend. Traffic moves to a healthy cluster, region, or provider-backed endpoint without every client SDK implementing its own regional failover logic. The application still sees one endpoint, while k8gb absorbs the regional failure underneath it.
So ... use Envoy when you want to know "which model" to choose, and use k8gb when you want to know "which cluster" to choose.

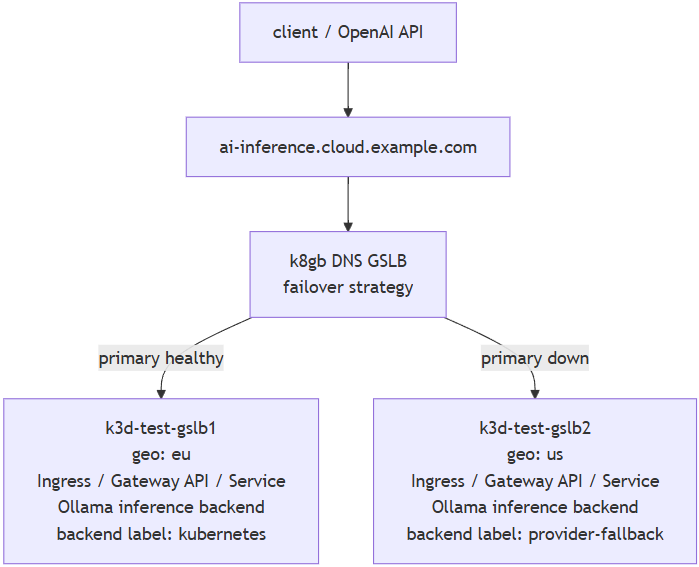

The Architecture¶
The key: this is composed from existing Kubernetes primitives.
No core architecture changes were added to k8gb to support this. The demo intentionally treats inference backends as interchangeable Kubernetes-backed services. It leverages only existing features, proving once again that k8gb is backend-agnostic. This "new" resilience functionality works OOTB using standard k8gb capabilities.
The Walkthrough¶
What does the demo do?
It runs real local inference. It deploys Ollama on each cluster, pulls a small model, creates a region-specific OpenAI-compat model, and probes the same global hostname during failover and failback.
Let's do it!
- Deploy the local (k3d) setup:
K8GB_LOCAL_VERSION=test make deploy-full-local-setup - Run the AI inference failover demo:
make ai-inference-demo... this deploys the ep to two clusters, probes the hostname, scales the primary ep down, waits for failover to the secondary, restores the primary, and waits for fallback.
Here's some output - but you can check what gets deployed and other useful actions you can take:
Deploying AI inference demo to k3d-test-gslb1 region=eu backend=kubernetes
...
gslb.k8gb.io/ai-inference-demo created
...
Waiting for deployment "ai-inference-demo" rollout to finish: 0 of 1 updated replicas are available...
deployment "ai-inference-demo" successfully rolled out
Waiting for Gslb status in k3d-test-gslb1
OK, good. The EU cluster is up.
Deploying AI inference demo to k3d-test-gslb2 region=us backend=provider-fallback
...
gslb.k8gb.io/ai-inference-demo created
...
Waiting for deployment "ai-inference-demo" rollout to finish: 0 of 1 updated replicas are available...
deployment "ai-inference-demo" successfully rolled out
...
Waiting for Gslb status in k3d-test-gslb2
And now so is the US cluster. Let's test it:
AI inference demo deployed. Probe host: http://ai-inference.cloud.example.com/v1/chat/completions
k3d-test-gslb1
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ai-inference-demo 1/1 1 1 48s
NAME READY STATUS RESTARTS AGE
pod/ai-inference-demo-695956cbc-pt7rm 1/1 Running 0 48s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ai-inference-demo ClusterIP 10.43.224.46 <none> 80/TCP 48s
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ai-inference-demo nginx ai-inference.cloud.example.com 172.19.0.6,172.19.0.7 80 48s
NAME STRATEGY GEOTAG
gslb.k8gb.io/ai-inference-demo failover eu
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
persistentvolumeclaim/ai-inference-demo-ollama Bound ai-inference-demo-ollama-eu 2Gi RWO <unset> 48s
k3d-test-gslb2
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ai-inference-demo 1/1 1 1 24s
NAME READY STATUS RESTARTS AGE
pod/ai-inference-demo-87948f567-x9mt8 1/1 Running 0 23s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ai-inference-demo ClusterIP 10.43.159.51 <none> 80/TCP 23s
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/ai-inference-demo nginx ai-inference.cloud.example.com 172.19.0.11,172.19.0.12 80 23s
NAME STRATEGY GEOTAG
gslb.k8gb.io/ai-inference-demo failover us
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
persistentvolumeclaim/ai-inference-demo-ollama Bound ai-inference-demo-ollama-us 2Gi RWO <unset> 24s
Looks good. Now simulate the failover. I've left the timestamps in this one for illustrative purposes:
[11:07:19] Primary endpoint is down.
[11:07:19] Waiting for failover convergence with up to 20 probes
[11:07:20] Expecting ai-inference.cloud.example.com to route to ingress IPs: 172.19.0.11 172.19.0.12
[11:07:20] Probing ai-inference.cloud.example.com through k8gb CoreDNS 10.43.40.74 in k3d-test-gslb1
Attempt 1/20
http_code=503 remote_ip=172.19.0.6
<html>
<head><title>503 Service Temporarily Unavailable</title></head>
<body>
<center><h1>503 Service Temporarily Unavailable</h1></center>
<hr><center>nginx</center>
</body>
</html>
route_status=waiting_for_expected_remote_ip expected="172.19.0.11 172.19.0.12"
...
Attempt 5/20
http_code=200 remote_ip=172.19.0.11
content=us, provider-fallback, k8gb.
[11:07:54] Scaling ai-inference-demo in primary context k3d-test-gslb1 to 1 replicas
deployment.apps/ai-inference-demo scaled
Waiting for deployment "ai-inference-demo" rollout to finish: 0 out of 1 new replicas have been updated...
Waiting for deployment "ai-inference-demo" rollout to finish: 0 of 1 updated replicas are available...
deployment "ai-inference-demo" successfully rolled out
[11:08:07] Primary endpoint restored.
That took about 48 seconds total to failover. Pretty good for a pure DNS-based
solution without any spec.strategy.dnsTtlSeconds fiddling.
